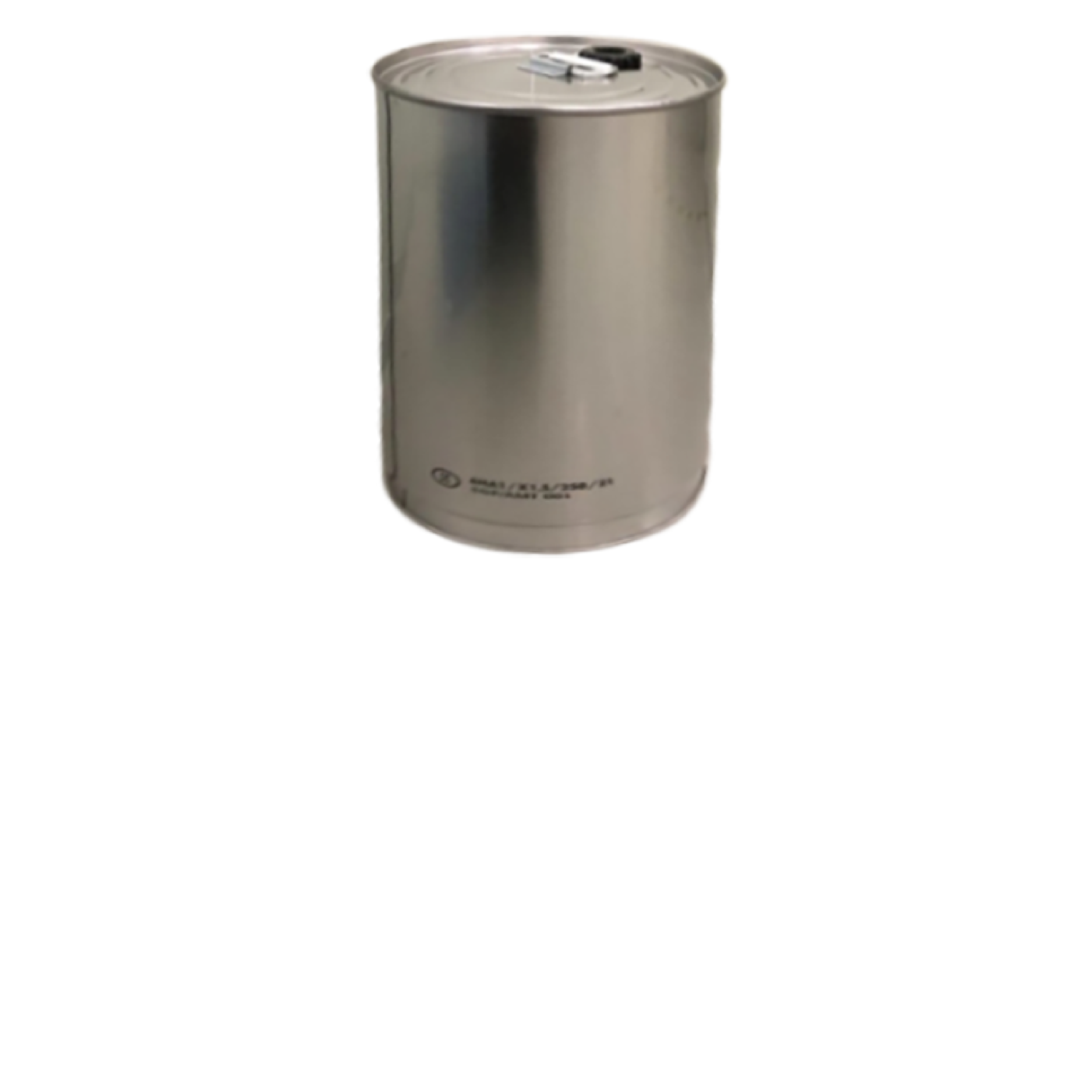

20L复合PAIL桶
产品型号：AMT_03348C 20L
规格尺寸
| Part name | 20L Clean PE Bottle | |
| Part number | AMT▁03348B▁20L | |
| Body Dimension (Unit:mm) | ||
| Outer diameter | 0 | Φ285 |
| Height | H1 | 377 |
| Height | H2 | 392 |
| Body Thickness | T | ＞1.0 |
| Inlet Dimension (Unit:mm) | ||
| Inner diameter | I | Φ38.5 |
| Outer diameter | 01 | Ф45.5 |
| Outer diameter | 02 | Φ49.5 |
| Part name | 20L Outer Pail | |
| Part number | AMT▁03348C▁2 | |
| Body Dimension (Unit:mm) | ||
| Outer diameter (Top) | Φ285 | |
| Outer diameter (Bottom) | 02 | Φ278 |
| Height | H | 414 |
尺寸图

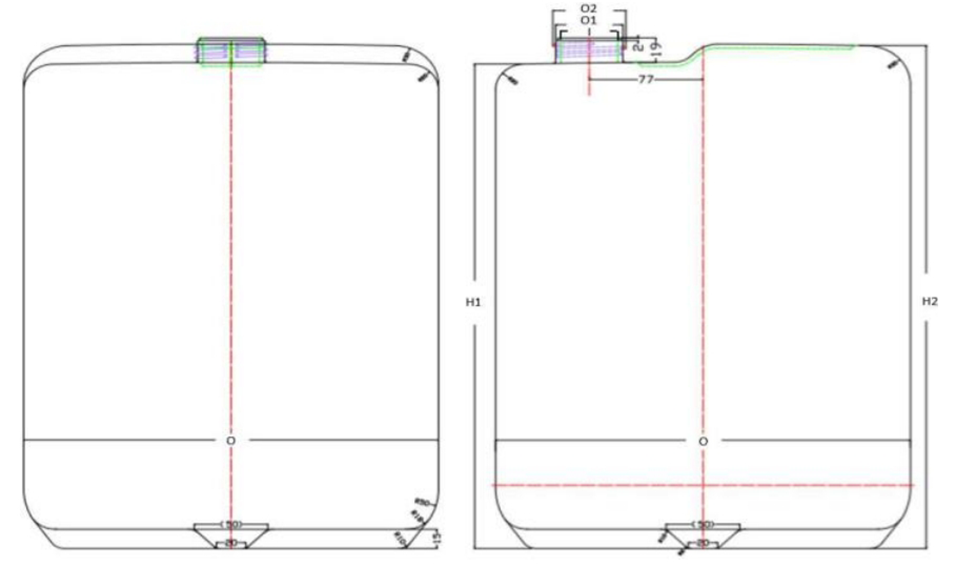

内衬桶：

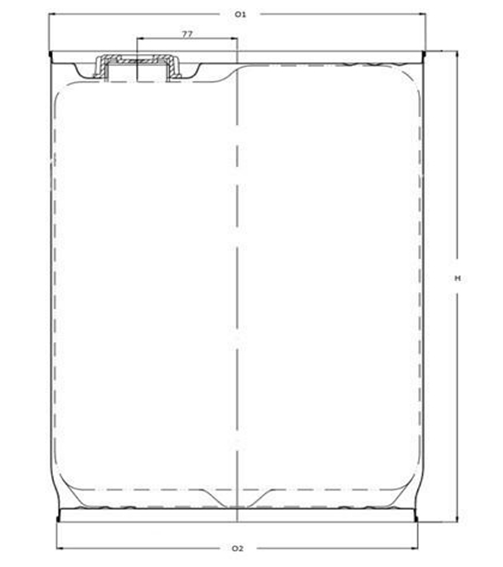

马口铁桶：
