PIE 301
Issued: March 2006
Supersedes: none
The following is a general description of the quality criteria of Corning®EAGLE XG Display
Grade substrates.
Display Grade substrates are sold F.O.B.: Tokyo, Japan. More detailed information and pricing can be
obtained by contacting Corning Display Technologies. See our locations and contact information on
the last page.
1. Specifications
Product description Display Grade
1.1 Dimensional Criteria (see 2.1 – Chart 1)

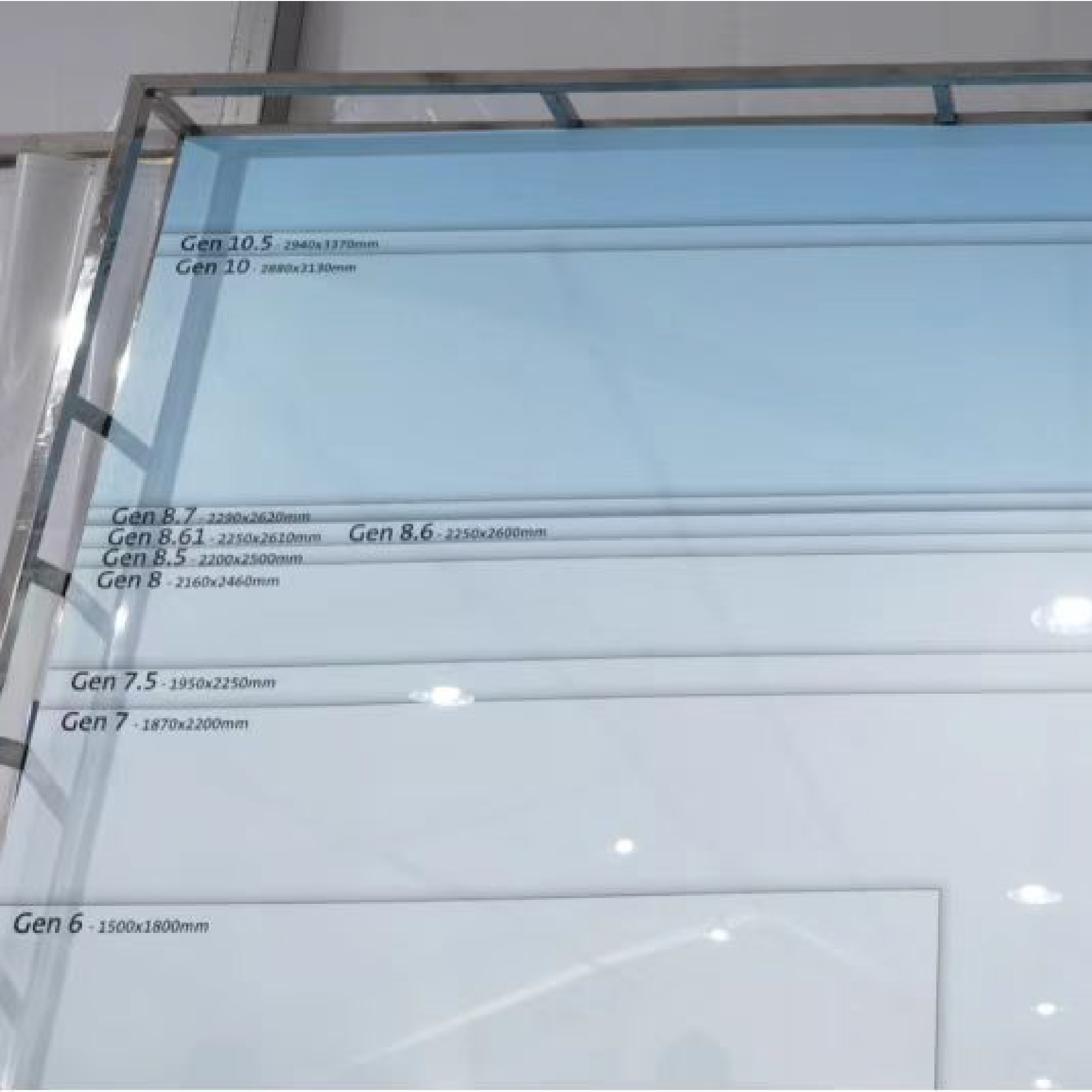

1. Maximum size 1500 x 1850 mm
2. Length/width tolerances ±0.06%
3. Thicknesses 0.7 ± 0.07 mm
0.63 + 0.063 mm
0.5 + 0.05 mm
4. Thickness Range ≤ 20 µm
(150mm Moving Window)
